Documentation of Bib2ML (aka. Bib2HTML)

Written by Stéphane GALLAND
Version: 2011-07-31
Documentation for bib2ml 6.7 and later


1. Introduction/Overview

2. How to install Bib2ML?

3. How to run Bib2ML?

4. Some words about the BibTeX format supported by Bib2ML

5. Supported Generators

6. Supported Themes

7. Supported Languages

8. License

9. Contributors

10. Bug Reporting


1. Introduction/Overview

Many researchers make use of BibTeX for maintaining a comprehensive bibliography which they can then draw on at will when writing papers.

Bib2ML is a handy utility that converts BibTeX files into HTML pages. You can use it to easily maintain an updated online bibliography. In addition, it is possible to specify, for each bibfile entry, a set of additional information that will appears inside the generated pages.

The output depends of the used theme. But the pages' hierarchy has a similar structure that the JavaDoc's ones (see the two screenshots generated with the theme Simple and the theme Dyna). It includes a overview page, an index, an list of scientifical domains in which the BibTeX's entries are...

Disclaimer: I've come across mention of other Bib2ML programs. This program is in no way related to any of them. For the curious, it was implemented using Perl.


2. How to install Bib2ML?

2.1. Prerequires

To run BibHTML you must install a Perl interpreter. Bib2ML was tested with Perl v5.8.3 under Linux.

You must also install the following Perl packages (mostly included inside the default Perl distributions):

2.2 Installation Reports on Several Operating Systems

Bib2ML and the Operating System's Supports
GNU/Linux Mandrake ok GNU/Linux Debian ok
GNU/Linux Ubuntu[1] ok GNU/Linux Slackware work
GNU/Linux RedHat must work Mac OS X work
Windows® without Cygwin work Windows® with Cygwin ok
GNU/Linux Suze not validated GNU/Linux Mandrivia ok
Other UNIX not validated
not validated: I'd tested Bib2ML and validated it
work: one user has reported a success for Bib2ML
not validated: No test nor report for a successfull installation and a successfull use of Bib2ML
must work: Bib2ML must work as for another operating system

[1] GNU/Linux Ubuntu is the reference operating system for Bib2ML

2.3. Download

You could download the lastest sources from the Bib2ML web page: http://www.arakhne.org/bib2ml/ or http://download.tuxfamily.org/arakhne/pool/b/bib2ml/.

The sources are commonly stored inside an archive called bib2ml-x.x.tar.gz where x.x is the number of the Bib2ML's version.

2.4 Install on Unix Systems

2.4.1. Uncompress

After downloading the sources' archive, you could uncompress it:


  $ gzip -d -c bib2ml-x.x.tar.gz | tar -x


This command will create the directory ./bib2ml-x.x in which all the sources are.

2.4.2 Copy the files

The main step of the installation is the copy of all the files required by Bib2ML. In fact, only a copy was necessary to install Bib2ML, no compilation.

I assume that you want to install Bib2ML into the directory /usr/local/lib/bib2ml. Type the following commands to install Bib2ML:

From now you could launch Bib2ML by typing one of the following commands:

Inside the section where I explain how to run Bib2ML, I assume that the launching command was bib2html. If you don't apply the commands from the section 2.4.3, you must replace bib2html by one of the above commands.

2.4.3. Finalize the installation

To finalize the installation, you could create a symbolic link to the Bib2ML's script from one of the directories inside your PATH (I assume that /usr/local/bin was in your PATH):


  $ cd /usr/local/bin
  $ ln -s -f /usr/local/lib/bib2ml/bib2html.pl bib2html


This recommendation will permits to all the users to run Bib2ML very simply.

Warning: this recommendation works only if the Perl's interpreter was /usr/bin/perl.

2.4.4. Simplify your life: use a Linux packages

You could simplify your life by installing Bib2ML with one of the proposed packages (see the download page or the download repository) for a Linux distributions.

2.5 Install on Windows® Systems without CygWin

This section explains how to install Bib2ML on a Windows® operating system without CygWin installed. Bib2ML was successfully installed on WinXP with TeXLive2007 and ActivePerl 5.8.8.

The installation steps are the steps (thanks to Dan Luecking for his report):

The links created by irun (part of TeXLive) use the kpsewhich libraries and texmf.cnf to find the perl scripts. The default setup should work since the search path for scripts is %TEXMF%/scripts/.

2.6 Install on Windows® Systems with CygWin

This section explains how to install Bib2ML on a Windows® operating system with CygWin installed. Bib2ML was successfully installed on WinXP with CygWin 1.5.24.

Bib2ML should be installed on Windows® Systems with CygWin in the same way as for Unix operating systems. Please see the section 2.4 Install on Unix Systems for the details.


3. How to run Bib2ML?

Bib2ML takes a list of arguments: the names of the bibfiles you wish to process, e.g.


  $ bib2html firstfile.bib secondfile.bib


The output is written by default is the directory ./bib2html.

SYNOPSYS


  bib2html [options] file [file ...]


OPTIONS

General options
-[no]b
--[no]bibtex
These options permit to generate (or not) a verbatim of the BibTeX entry.
--cvs If specified, this option disables the deletion of the subfiles .cvs, CVS and CVSROOT in the output directory.
--doctitle text Sets the title that appears in the main page.
-f
--force
Forces to overwrite into the output directory.
-?
-h
Show the list of supported options.
--help
--man
--manual
Show the manual page.
-o directory
--output&bnsp;directory
Sets the directory in which the pages will be generated.
--protect shell_wildcard If specified, this option disables the deletion of the subfiles that match the specified shell's wildcard in the output directory.
--svn If specified, this option disables the deletion of the subfiles .svn and svn in the output directory.
--version Show the version of Bib2ML.
--windowtitle text Sets the text that appears as the window's title.
Generator options
--d name[=value]
--generatorparam name[=value]
Sets a generator param. It must be a key=value pair or simply a name. Example: "target=thisdirectory" defines the parameter target with corresponding value "thisdirectory". The specified parameters which are not supported by the generator are ignored.
--g class
--generator class
Specify the generator to use. class must be a predefined generator's identifier of a valid Perl classname. See --genlist to obtain the list of the predefined generators. The default generator is HTML. See the list of supported generators for more details.
--generatorparams Shows the list of supported parameters, and their semantics for the selected generator.
--genlist Shows the list of the supported generators.
--jabref The generator will translate JabRef's groups into Bib2ML domains.
Checker options
--[no]checknames Force Bib2ML to check the author's names. This checking includes:
  • only the second first names of two authors differ
  • two last names are a similar syntax (90% or more similar)
Theme options
--theme name Specify the theme used by the generator. See the option --themelist to obtain the complete list of supported themes. See the list of the supported themes for more details about them.
--themelist Shows the list of supported themes. See the list of the supported themes for more details about them.
Localization options
--lang name Sets the language used by the generator. See --langlist to obtain the list of the supported languages.
--langlist Shows the list of supported language.
TeX options
-p file
--preamble file
Sets the name of the file to read to include some TeX preambles. You could use this option to dynamicaly defined some unsupported LaTeX commands (see how to define and use a preamble).
--texcmd Shows the list of supported LaTeX commands. The supported TeX commands permits to create a specific HTML output accordingly to the TeX semantic.
Logging options
-q Don't be verbose: only error messages are displayed.
--[no]sortw Shows (or not) a sorted list of warnings by appearence line. For example, this could be use to obtain a better output for a parsing program.
-v Be more verbose. Each time this option was specified, the verbosing level was increazed.
--[no]warning If false, the warning are converted to errors. An error stops the program when it occurs. A warning does not stops the program.


4. Some words about the BibTeX format supported by Bib2ML

Bib2ML use as input files which respest as much as possible the BibTeX file format. It add more restrictive constraints than this official format, and includes some additional fields.

4.1 Short Recall on Bib2TeX's File Format

To be recognized by Bib2ML, each entry must begin with an '@', immediately followed by the type of entry it is (see the list of recognized entry types), immediately followed by a '{'. It will then process the fields you've specified for that entry until it hits the closing '}' (see the list of recognized fields). The format then looks something like this:


  @entrytype{entry_key,
    fieldname1 = "Contents",
    fieldname2 = {Contents},
    fieldname3 = contents,
    ...
  }


The first information required by the BibTeX's file format is the identifier of the entry. This entry_key must be unique and, in most of the cases, it is composed by the author's name, the publication year... In LaTeX, this key was used to reference this bibliographical entry.

Three types of field contents are valid, as shown here. In fieldname1, the contents are enclosed in quotes; in fieldname2 they are enclosed in curly braces, and in fieldname3 there are no surrounding characters. The third type is often used to specify pre-defined string values, and any value specified in this way will be compared to the list of @strings you've defined for a possible match (if there is a match, it will be expanded out to the full value of the @string).

Any amount of whitespace can come between the fieldname and the '=', or between the '=' and the contents. In addition, Bib2ML can handle nested {}'s in the contents of a field.


4.2 Recognized Entry Types

Bib2ML recognizes the following bibliography entry types (by the generator HTML):

Any other entry type will be proceeded as @misc.

Note about the type @misc:
this entry type is considered as the default. It requires the following fields: author and year. This constraint is not from the definition of the standard BibTeX file format. But it was introduced for the page's generation of Bib2ML.

I welcome requests to support other entry types. The generators could support their own entry types. See the section about supported generator for more details


4.3 Recognized Fields

Bib2ML recognizes the following bibliography field types (by the generator HTML):

The real support of a field depends on the entry type in which it appears. The following table explains where the fields are needed and where they are optional.

Supported Fields by the Generator HTML
article book booklet inbook inproceeding
incollection
manual masterthesis misc phdthesis proceedings techreport unpublished
address O O O O O O O O O
annote O O O O O O O O O O O O
author R RO R RO R O R RO R RO R R
booktitle R
chapter R
edition O O O
editor RO RO O RO RO
howpublished O O
institution R
journal R
month O O O O O O O O O O O
note O O O O O O O O O O O R
number O O O O O O
organization O O O
pages O O O
publisher R R O O
school R R
series O O O O
title R R R R R R R R R R R R
type O O O O
volume O O O O O
year R R R R R O R R R R R R
R: this field was required by Bib2ML
RO: this field was required by Bib2ML if the other required field was not given
RO: this field was required by Bib2ML if the other required field was not given
O: this field was not required by Bib2ML
When a cell was empty, this field is ignored by Bib2ML

I welcome requests to support other fields. The generators could support their own. See the section about supported generator for more details

4.4 Definition of Strings and Preambles

Like BibTeX, Bib2ML also handles arbitrary @string definitions, which can be used in any entry field, e.g.


  @string{acl = "Association for Computational Linguistics"}
  ...
  @proceedings{PROC,
    publisher = acl,
    ...
  }


Bib2ML also supports the definition of TeX preambles. The TeX preambles are TeX commands which are evaluated and ran before any treatement on the BibTeX entries. The definition of a preamble is done with @preamble, e.g.


  @preamble{\def\th{\ensuremath{^{th}}}}
  ...


The TeX commands which can be put inside a @preamble are limited to the commands supported by Bib2ML (see the command-line option --texcmd to obtain a list).

4.5 Definition of the Lists of Names

In some fields (e.g. author and editor) you must specify a list of names. This list is composed of names separated by the keyword AND. Each name must respect one of the following syntaxes:

If present the jr part must be one of 'junior', 'jr.', 'jr', 'senior', 'sen.', 'sen', 'esq.', 'esq', 'phd.' and 'phd'.

Good Example: DUPONT, Henri and Pierre, Alain Michel and Jim WASHINGTON jr.

DUPONT, Henri and Pierre, Alain Michel and Jim WASHINGTON jr.
lastfirstlastfirstfirstfastjr

Bad Example: Henri DUPONT, Alain Michel Pierre and Jim WASHINGTON jr.

Henri DUPONT, Alain Michel Pierre and Jim WASHINGTON jr.
lastfirstfirstfastjr


5. Supported Generators

The generator is one of the major module of Bib2ML (with the BibTeX parser). It aims to create the HTML files from the internal data structure given by the parser. It is the generator which apply the canvas of the generated pages (use of 3 frames, links to the overview the index from the header of each entry's page...).

In addition to the usable generator listed below, Bib2ML includes an abstract generator which is the basis of all the others.

5.1. Generator HTML

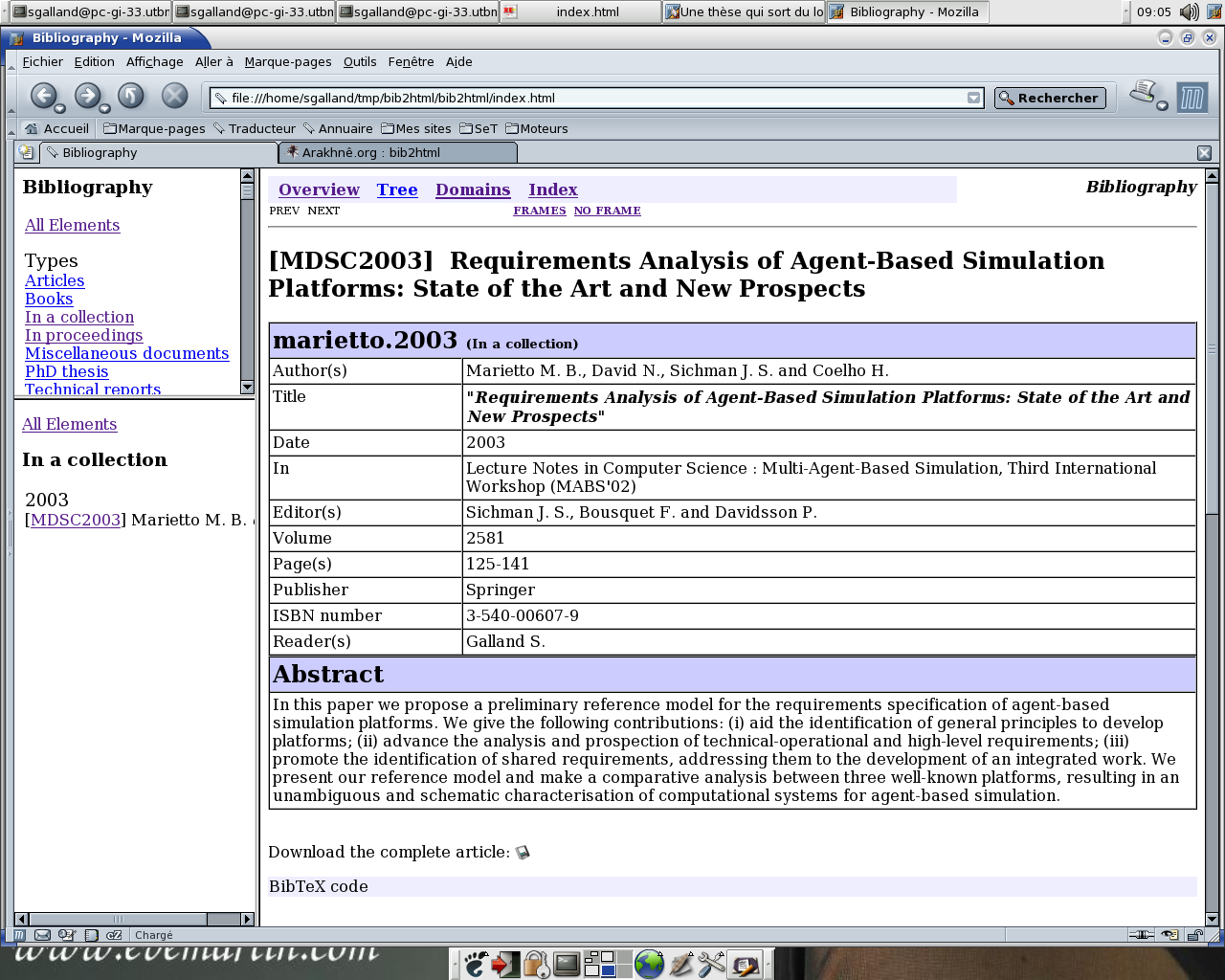

The generator called HTML is the default HTML generator of Bib2ML. Its purpose is to generate a basic content which is quiet similar to a lot of BibTeX to HTML tools (such as the LaTeX distribution's bib2html).

SUPPORTED FIELDS
See this table.

FEATURES
The generated result in based on three frames:
  • upper-left frame: a brief overview which permits to do some high-level selection,
  • lower-left frame: a overview of all the entries which are selected accordingly to the selection made inside the upper-left frame,
  • right frame: the main frame which aims to display all the informations (overview, entry's pages...).
One page per entry:
  • All the required and optional fields listed in this table are displayed inside a table (except the field annote).
  • Display the content of the field annote (or comments) inside a section just below the field's table.
  • If the command-line option --bitex was specified (default), a verbatim output of the BibTeX entry was generated in its own section.
One short-overview page (inside the upper-left frame) which contains all the entry's types.
One short-overview page (inside the lower-left frame) which contains all the entries grouped by year and sorted by authors and publication date.
One overview page (inside the right frame) which contains a list of all the entries grouped by year and sorted by authors and publication date.
One tree-view page which contains all the entries grouped by publication's type and sorted by authors and publication date. This page could be overwriting by subclasses of this generator to provide antoher kind of tree-view.
A set of index pages. The index lists the significant words found inside the BibTeX file and propose a link to the entry's page where this word is. The generator produces one HTML page for each letter of the alphabet.
A significant word is a word which has more than 2 letters and which are not known are not-significant by the Bib2ML's internal database.

GENERATOR'S PARAMETERS
author-regexp=expr A Perl's regular expression (which is case-insensitive) against which the lastname of an author is matched. If the author matches, (s)he is included in the overview window author list.
hideindex If presents, hide the index link and do not generate the index files.
html-generator=encoding This parameter is a string that correspond to the character encoding of the generated HTML pages. The default encoding is ISO-8859-1.
max-names-overview=integer An integer which is the maximal count of authors in the overview page.
max-names-list=integer An integer which is the maximal count of authors on the listing in the lower-left frame.
newtype=expr A comma separated list of new publication's types, with singular and plural label.

The value must respect the format: type:Singular:Plural[,type:Singular:Plural...]
where type is the identifier of the new type, Singular is the label used when this type has zero or one entry, Plurial is the label used when this type has two or more entries.

Each new type will appears inside the overview's pages. But this feature does not explain how to generate the content of the corresponding entry's pages. So, the entry's pages will be generated as for @misc entries (except if you define your own generator).
stdout If presents, this option force Bib2ML to output the files onto the standard output instead of files.
type-matching=expr A coma separated list of items which inititalizes an associative array of type entry mappings.
Each item must respect one of the following syntaxes:
  • type => type (since the version 1.3)
  • type -> type (since the version 1.3)
  • type > type (since the version 1.3)
  • type , type (original syntax)
For example incollection,article,inproceedings,article means that all the BibTeX's @incollection entries will be displayed as @article entries. The same thing for the @inproceedings.
So, the specified value for this parameters must be a list of pairs.
An alternative syntax is: type=>type[,type=>type...]. With the same example a above, the value should be incollection=>article,inproceedings=>article.
xml-verbatim If this parameter was given, Bib2ML will generate a verbatim text that corresponds to the XML specification of the entries. This text is put just below the BibTeX verbatim text.

5.2. Generator Extended

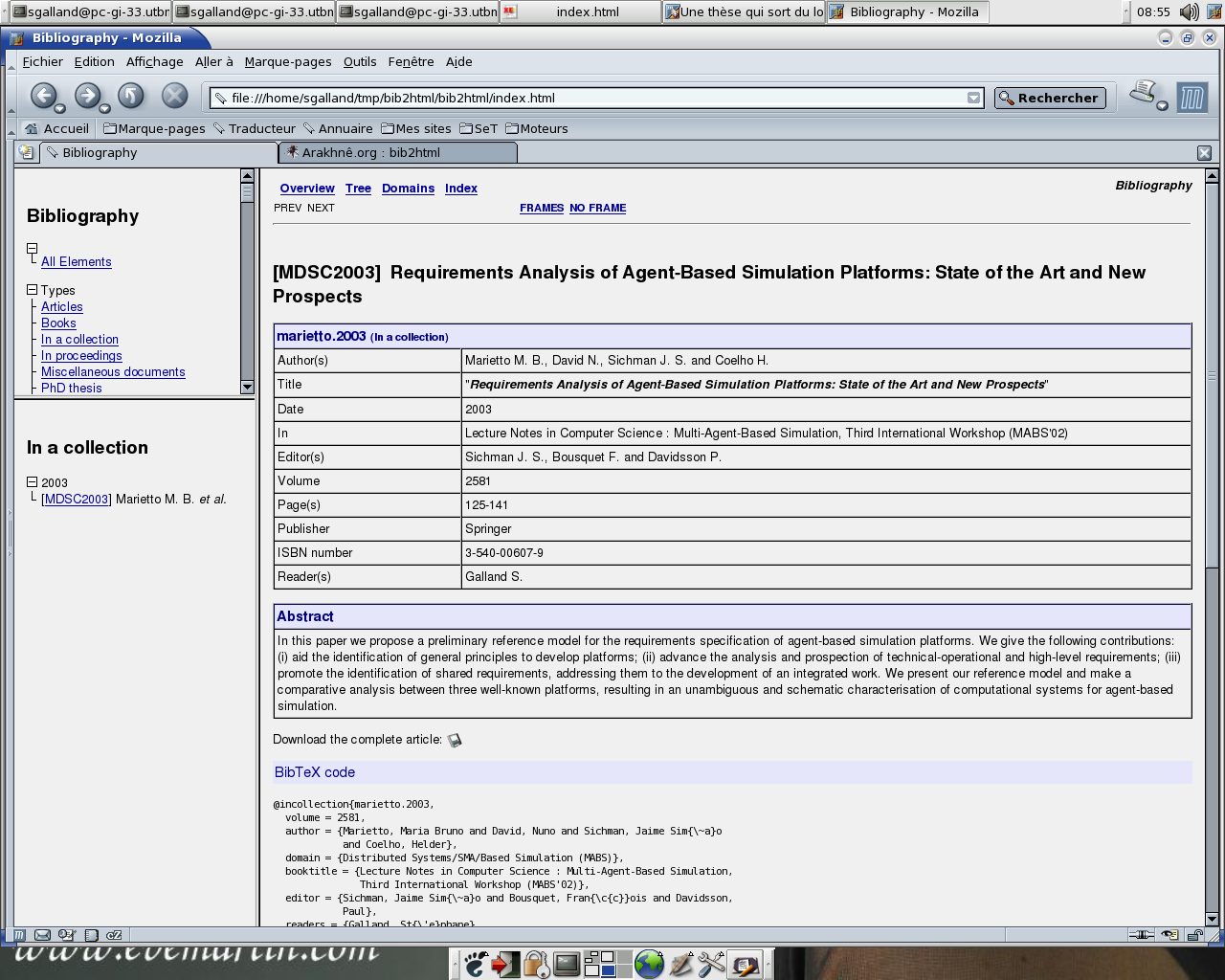

The generator Extended is an extension of HTML. Its purpose is to provide some additional features.

NEW SUPPORTED FIELDS
abstract is the abstract associated to the entry (in most of the case, it is written at the begining of the paper's article).
adsurl is an URL from the Astrophysics Citation Reference System which is corresponds to the entry. This field supports the URL's protocols ftp:, file:, https:, gopher:, mailto: and http: (this last is the default).
doi is the Document Object Identifier (DOI) which is assumed to be an URL linked to a document on Internet. This field supports the URL's protocols ftp:, file:, https:, gopher:, mailto: and http: (this last is the default).
isbn is the ISBN number of the entry.
issn is the ISSN number of the entry.
keywords is list of the keywords associated to the entry (in most of the case, they are mentionned at the begining of the paper's article).
localfile is the path (on your local host) to a electronical version of the document that is described by the entry (I recommended to put only a PDF or a Postscript file here).
If this field was present and the corresponding file was found, Bib2ML generates a link to this into the entry's page.
See the parameters of this generator to influence the default location of the electronical files.
readers is a list of people who read this entry. The value of this field must support the BibTeX's syntax for names.
url is an URL associated to the entry. This field supports the URL's protocols ftp:, file:, https:, gopher:, mailto: and http: (this last is the default).
pdf is an URL associted to the entry with corresponds to a PDF file. This field supports the URL's protocols ftp:, file:, https:, gopher:, mailto: and http:.

NEW FEATURES
In the entry's pages:
  • The new fields are added into the generated table (except for abstract and keywords).
  • The values of the fields abstract and keywords are put inside a specific section.
The overview page is extended with the list of all the authors.

NEW GENERATOR'S PARAMETERS
absolute-source=path is the absolute path of the directory where the downloadable documents could be found (see the field localfile for details about the downloadable documents).
The parameters absolute-source, relative-source and target-url are mutually exclusive.
backslash if presents, indicates that backslashes will be removed from the link fields (url,ftp...).
doc-repository=path if presents, indicates the directory where are stored the electronical documents. This option assumes hat electronical documents have a name similar to the BibTeX key. For example the entry with the key Galland.esm00 could have an associated electronical document with its name equals to one of Galland.esm00.pdf, Galland.esm00.PDF, Galland.esm00.ps or Galland.esm00.PS.
nodownload if presents, indicates that no link to the electronic documents will be generated. By extension, if presents no copy of there files will be made.
relative-source=path is the relative path of the directory where the downloadable documents could be found (see the field localfile for details about the downloadable documents). This path is relative to the directory where the BibTeX file is located.
The parameters absolute-source, relative-source and target-url are mutually exclusive.
target-url=url is an URL where the downloadable documents could be find. It means that if this URL was specified, Bib2ML assumes that all the files could be download from the specified URL. It means also that no copy will be made by Bib2ML.
The parameters absolute-source, relative-source and target-url are mutually exclusive.

5.3. Generator Domain

The generator Domain is an extension of Extended. Its purpose is to provide some additional features about the scientifical domains of the entries.

This generator introduces the concept of «domain» which corresponds to the name of a scientifical context/domain. An entry could be inside one or more domains.

NEW SUPPORTED FIELDS
domain is the first domain in which this entry was.
This field does not overset the previous domain's setting (except for domain).
domains is a list of domains in which this entry was. The domain's separator is the character ':'.
This field does not overset the previous domain's setting (except for domains).
nddomain is the second domain in which this entry was.
This field does not overset the previous domain's setting (except for nddomain).
rddomain is the third domain in which this entry was.
This field does not overset the previous domain's setting (except for rddomain).

NEW FEATURES
Inside the entry's page, a section with the other entries inside the same domains was added. The entries of this list are grouped by domains and sorted by authors.
One domain-view page which contains all the entries grouped by domain and sorted by authors and publication date. This page could be overwriting by subclasses of this generator to provide antoher kind of domain-view.

5.4. Generator XML

The generator called XML is the default XML generator of Bib2ML. Its purpose is to generate a basic content which respects the XML DTD defined by BibteXML.

SUPPORTED FIELDS
See this table and the definition of the BibteXML's DTD.

GENERATOR'S PARAMETERS
stdout If presents, this option force Bib2ML to output the files onto the standard output instead of files.
xml-encoding=encoding is character encoding which will be put into the header of the generated XML file. All values for the character encoding supported by the XML specifications are allowed (ISO-8859-1, UTF8...). The default value is ISO-8859-1.

5.5. Generator SQL

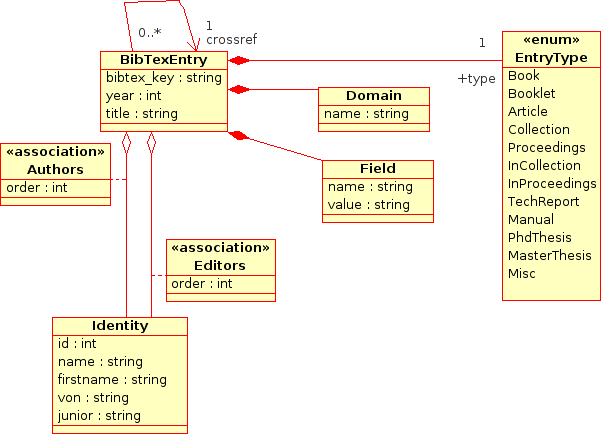

The generator called SQL is the default SQL generator of Bib2ML. Its purpose is to generate a basic content which respects the SQL schema illustrated by the following figure.

SUPPORTED FIELDS
See this table.

GENERATOR'S PARAMETERS
sql-encoding=name Defines the character encoding used to generate the SQL script.
sql-engine=name Defines the SQL engine for which the SQL script should be generated. The supported engines are: "mysql" and "pgsql".
stdout If presents, this option force Bib2ML to output the files onto the standard output instead of files.


6. Supported Themes

Bib2ML permits to select a theme which influence the look of the generated pages. You could select a theme which the command-line option --theme and list all the supported themes which --themelist.

6.1. Theme Simple

The theme Simple is the default theme. It is quiet similar to the default output of JavaDoc.

6.2. Theme Dyna

The theme Dyna is an experimental theme. It uses its own look policy and includes some dynamical features such a collapsing lists...

6.3. Contribute

Do you want to have your own theme for the HMTL generators? If yes, you should write your own theme in Perl.

Create a Perl class which extends the class Bib2HTML::Generator::Theme and implements the required functions. To have any example of implementation, see the two default themes: Bib2HTML::Generator::Theme::Simple and Bib2HTML::Generator::Theme::Dyna. Caution: you must put your theme class inside the same directory as Simple and Dyna.


7. Supported Languages

Bib2ML supports the French, the English, Spanish (thanks to Sebastian), Portuguese (thanks to João) and Italian (thanks to Cristian).

7.1. Contribute

If you want to add the support for a specifical language, you need to create the following files inside the language directory (/path/to/bib2ml/Bib2HTML/Generator/Lang):

The syntax of the language files is:


8. License

Bib2ML is under the GNU GPL license.

Bib2ML is a converter of BibTeX data files into HTML pages.
Copyright © 1998-2006 Stéphane GALLAND <galland@arakhne.org>

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; see the file COPYING. If not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.


9. Contributors

I would like to thank the following people for generously taking the time to point out bugs, suggest improvements, or send me Bib2ML patches. Many thanks to:


10. Bug Reporting

You could submit bugs, suggest improvements, or send Bib2ML patches by using one of the following methods:

Copyright 2004-11 © Stéphane GALLAND
<galland@arakhne.org>
